Mondraker Crafty RR 2022 koko L
Myydään2 200 €
Kuvaus

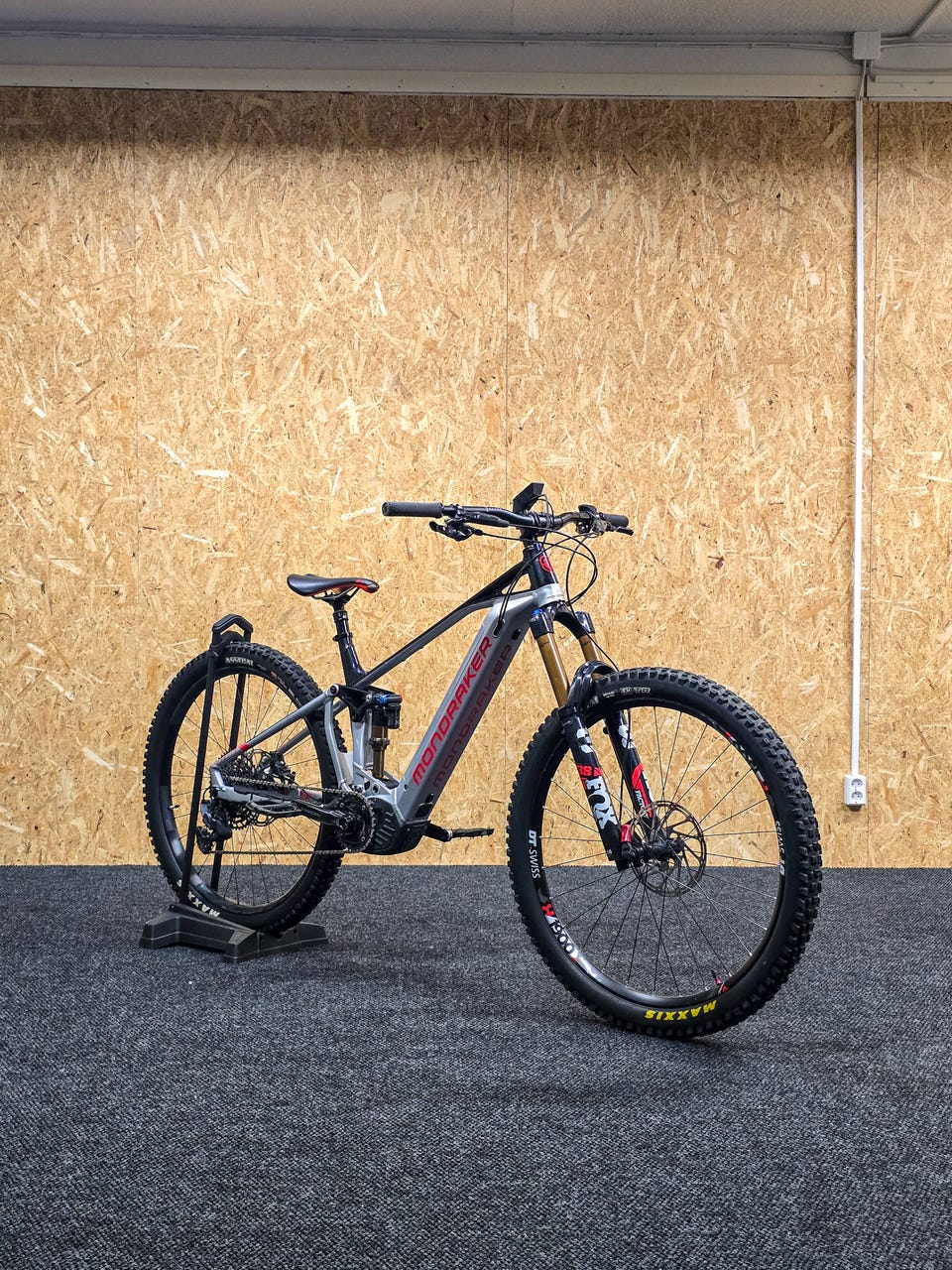

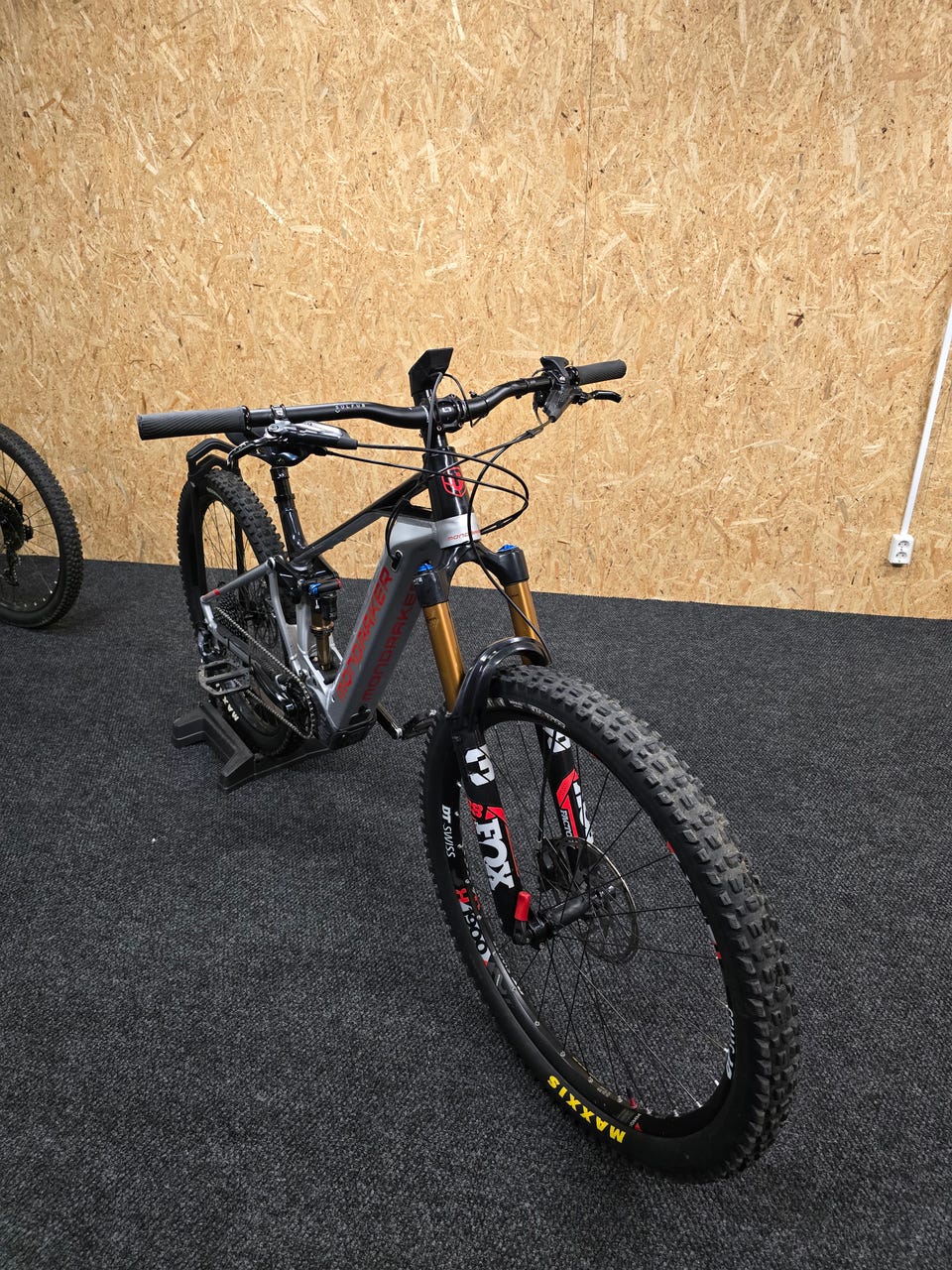

Vuosimallin 2021 Mondraker Crafty RR. (otettu käyttöön 2022)
Voimansiirto ja Iskarit huollettu 1000km sitten.
Koko L
Ajettu 4082km
85nm Bosch CX line Gen4
625wh irroitettava akku.
Components
Technical specs
frame
Frame
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery with integrated alloy cover, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
sizes
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
rear shock
Rear shock

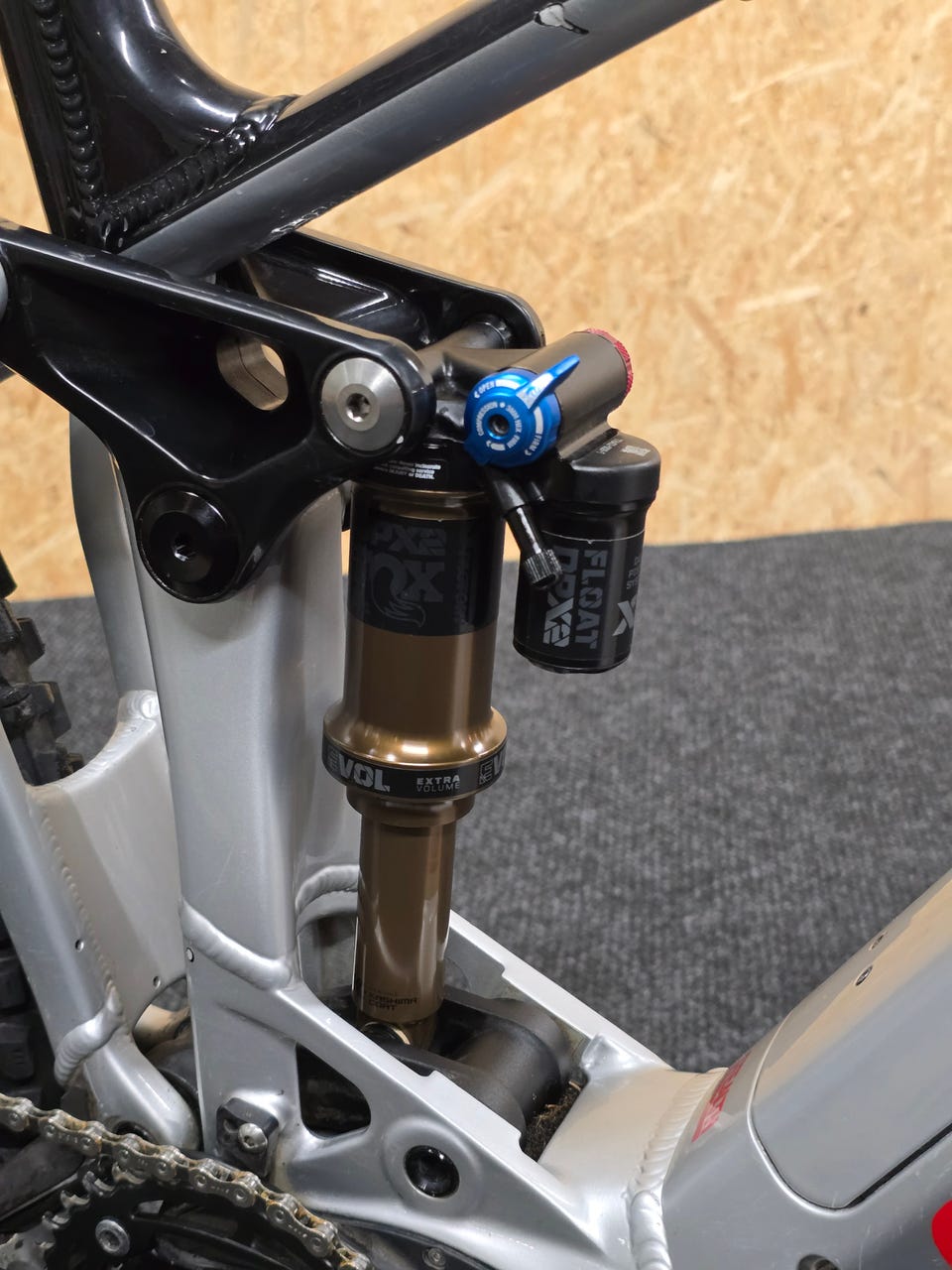

Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
shock settings
Shock settings
medium compression, medium rebound, air volume spacer 0.2
fork
Fork
Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
headset
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
stem
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
handlebar
Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
grips
Grips
Onoff Diamond, 1lock-on, 135mm
seatpost
Seatpost
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm
saddle
Saddle
FIZIK Terra Aidon X5 145mm
front brake
Front brake
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
rear brake
Rear brake
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
brake lever
Brake lever
Sram Code R, tool-free reach adjust
rims
Rims
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
spokes
Spokes
Mavic J-bend duble butted, contactless lacing
front hub
Front hub
Mavic, Boost 15x110mm, IS 6 bolts
rear hub
Rear hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
front tire
Front tire
Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
rear tire
Rear tire
Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
crankset
Crankset
Race Face Aeffect ebike, 165mm
rings
Rings
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
chain
Chain
Sram NX Eagle, 12s, Powerlock
rear derrailleur
Rear derrailleur

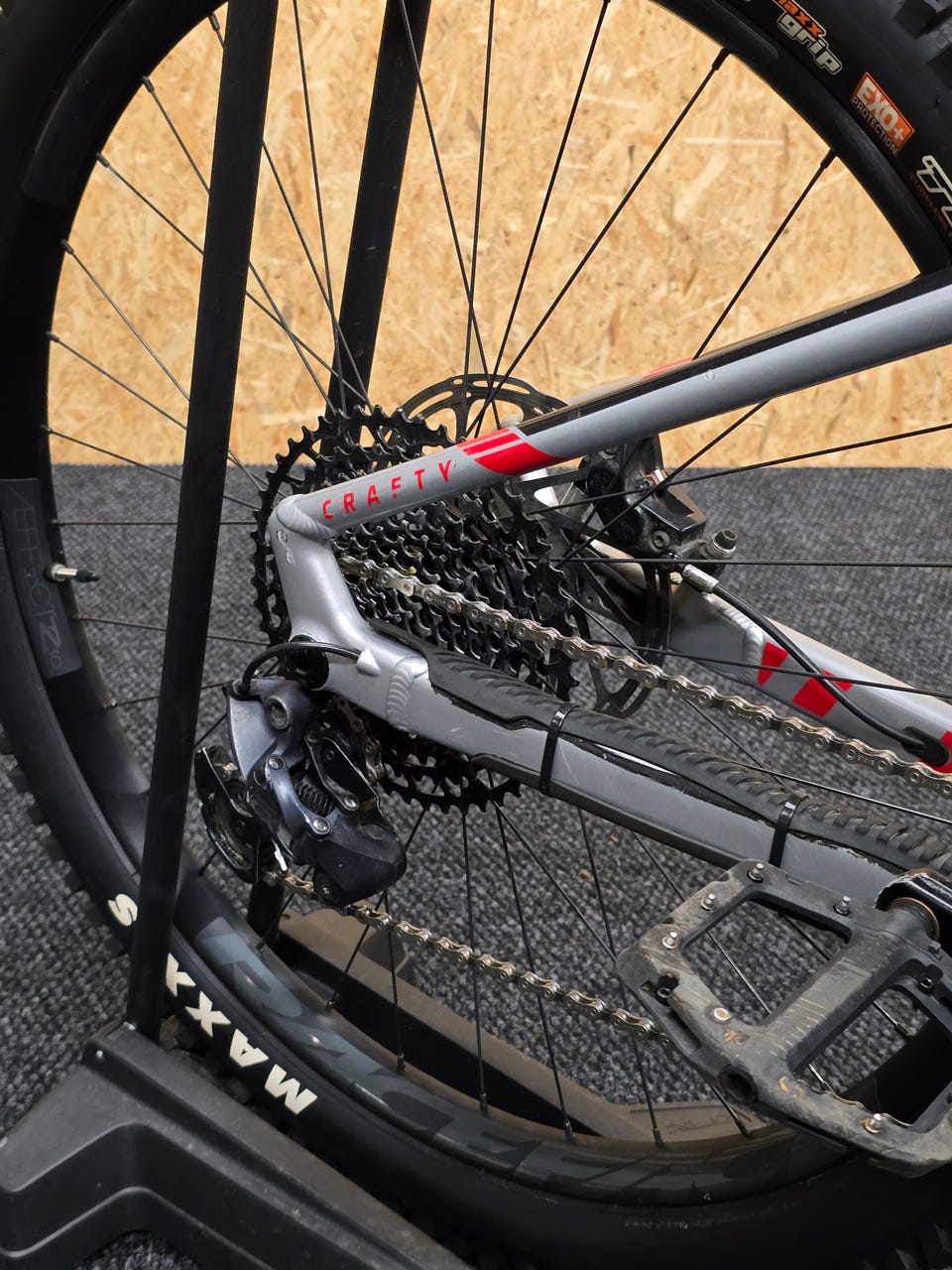

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
shift levers
Shift levers
Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
casette
Casette
Sram XG-1230, 11-50T, 12s
derailleur hanger
Derailleur hanger
Mondraker M068
display
Display

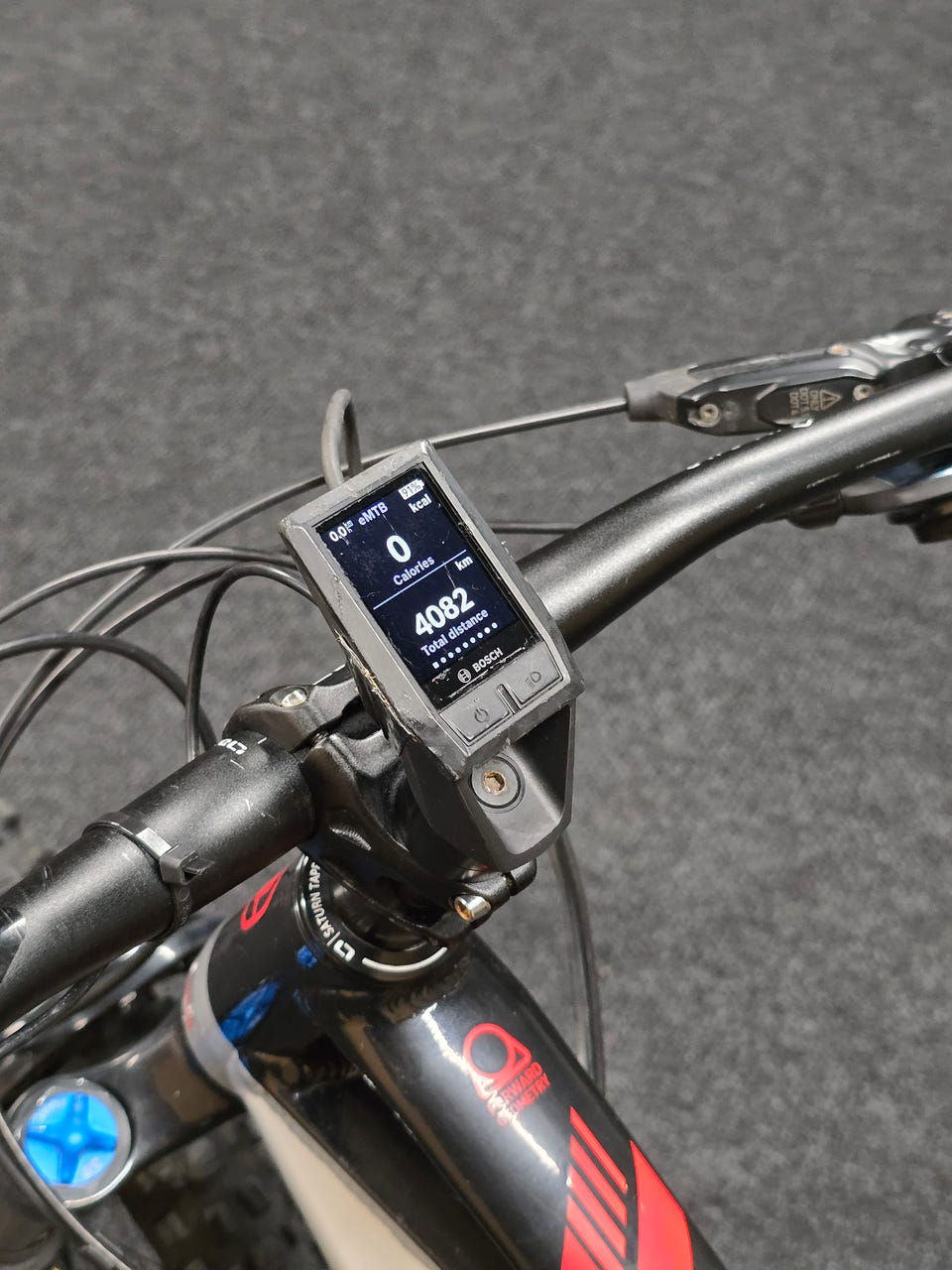

Bosch Kiox 300
motor
Motor
Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3
battery
Battery
Bosch Powertube 625Wh
Huom! Painike, joka näyttää koko kuvauksen on pelkästään visuaalinen.
Lisätietoja
- Kunto
- Hyvä
- Tyyppi
- Sähköpyörät
- Sukupuoli
- Unisex
