AVID E3 + AVID Stage 16 Remote I/O Stage Rack (inc.USB-IlLOQ)
Myydään
3 200 €
Myyjä ei ole vielä aktivoinut ToriDiiliä. ToriDiili on Torin uusi maksu- ja kuljetuspalvelu, jolla kotiutat torilöydöt nopeasti ja turvallisesti. Lue lisää
Tuotteen kuvaus
Kunto: Hyvä
AVID E3 + AVID Stage 16 Remote I/O Stage Rack (inc.USB-IlLOQ)
Siistissä kunnossa ja säilytetty aina casessä jotka kuuluvat kauppaan…Avid .Engine3 on kellutetussa kotelossa
Mukaan myös kaapeilta tarvitttava määrä
Ps.Yksityinen myyjä joten hintaan ei lisätä ALV:tä

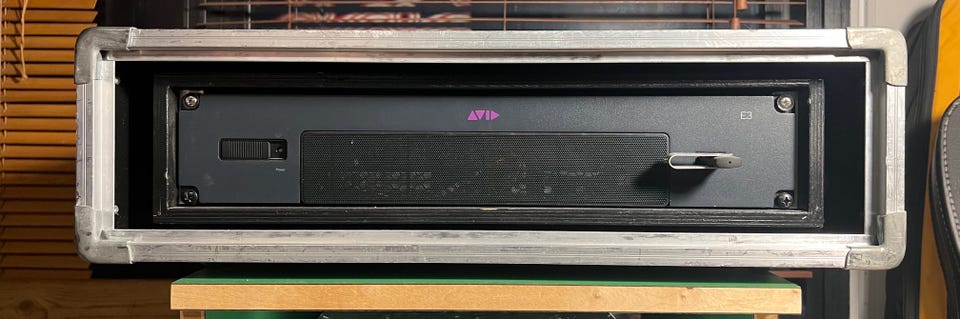

AVID E3 2U Rack-Mountable HDX-Powered Engine for S3L System
AVID E3 Engine for S3L Console
The E3 engine provides mix position audio I/O, and connections for synchronization, utility and control. The E3 engine also houses the main CPU, DSP, and system drives for the S3L-X system. The E3 engine is located at the mix position along with the console.

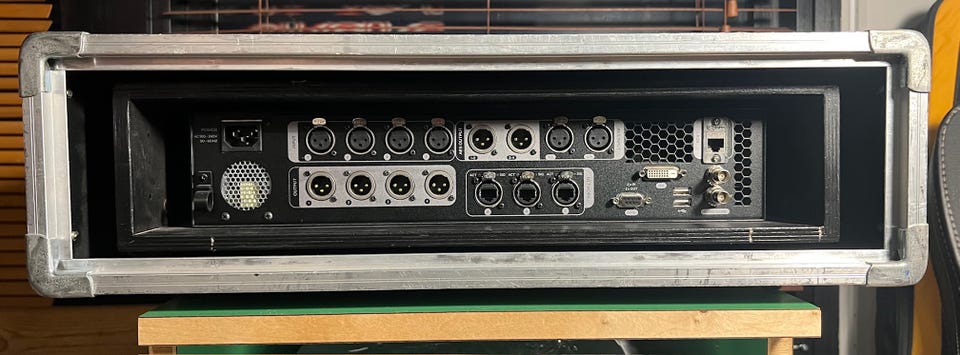

Audio I/O:
Four analog mic/line XLR inputs with mic preamps for connecting microphones or line-level devices at the mix position
Four analog line-level XLR outputs
Two stereo AES/EBU digital inputs
Two stereo AES/EBU digital outputs
Synchronization, Control and Utility Connections:
Three Neutrik etherCON RJ-45 Ethernet Network ports for connecting to the S3 control surface and Stage 16 boxes
One standard RJ-45 Ethernet port for connecting to a client computer or networking equipment to enable ECx Ethernet Control remote system control
Three external USB 2.0 ports for connecting USB storage devices (for data transfer, and for 2-track recording and playback), iLok USB Smart Keys (for plug-in authorization), and compatible MIDI devices
One internally-mounted, secure USB 2.0 port for an iLok
16 channels of MIDI input and 16 channels of MIDI output via a compatible external USB MIDI interface
DVI video monitor port for software screen display
Word clock I/O for digital clock synchronization
One RJ-45 (100 BaseT Ethernet) port for ECx Ethernet Control remote system control
One GPIO port (DB9 connector) providing two GPI inputs and two GPI outputs
An internal universal PSU (100V to 240V nominal 50–60 Hz) accepting standard IEC AC power cables
CPU, DSP, and System Drives:
The E3 engine houses the CPU, Avid Pro Tools|HDX-powered DSP, and system drives that provide the processing power to run the VENUE software and plug-ins for your system. The USB ports on the E3 engine allow you to do the following:
Update and restore your VENUE system software
Install compatible plug-ins
Transfer VENUE Show files and other data
Record and play back 2-track audio

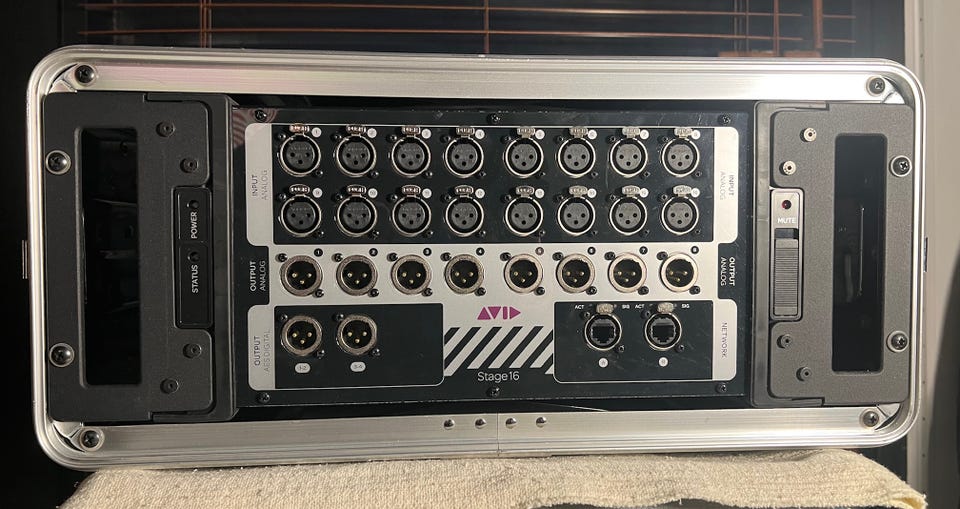

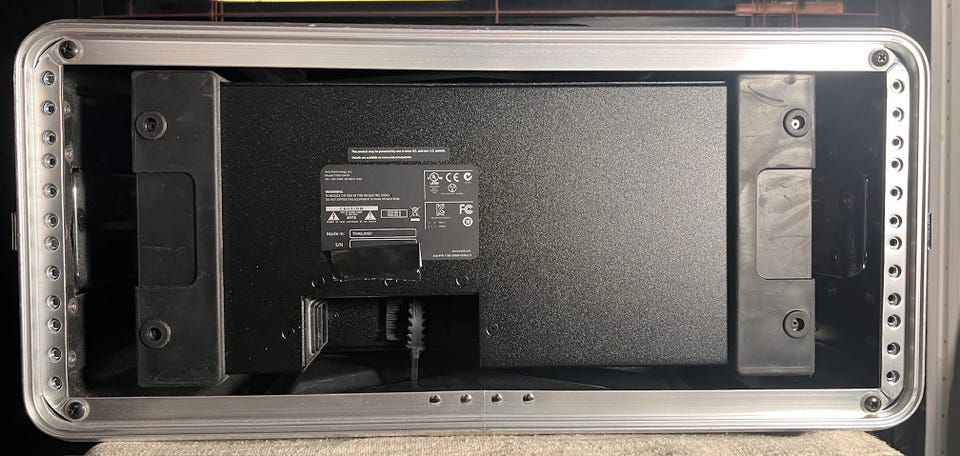

AVID Stage 16 Remote I/O Stage Rack for S3L Digital Mixing System
Stage 16 provides remote stage I/O for S3L-X systems in a 4U rack-mountable enclosure. The S3L-X system supports redundant audio snake connections to up to four Stage 16 boxes. Audio snake connection are made using supported Ethernet cables.
Audio I/O
•16 analog inputs with remotely controllable mic preamps and individually selectable phantom power •Eight analog outputs •Four AES digital output channels (on two stereo connectors)
Control Connections
•Two Neutrik etherCON RJ-45 Ethernet Network ports for connecting to the E3 engine and to other Stage 16 boxes •An internal universal PSU (100V to 240V nominal 50–60 Hz) accepting standard IEC AC power cables
Linkit:
Nigwish/Kimmo Ahola
https://www.youtube.com/watch?v=YzJp7EKWMrw
S3L System Intro Part 1
https://www.youtube.com/watch?v=s2J … =PLv62YjH0Fwi5W-kM3eiCUR0S5DC3F4pj3
