Yamaha aw16g digital audio workstation DAW
Myydään
222 €
Myyjä ei ole vielä aktivoinut ToriDiiliä. ToriDiili on Torin uusi maksu- ja kuljetuspalvelu, jolla kotiutat torilöydöt nopeasti ja turvallisesti. Lue lisää
Tuotteen kuvaus
Kunto: Hyvä
Toimintakykyinen laite edelleen
9/10 raidan säätönamikka hävinnyt ajansaatossa.
Laitteen ainot käyttäjä.

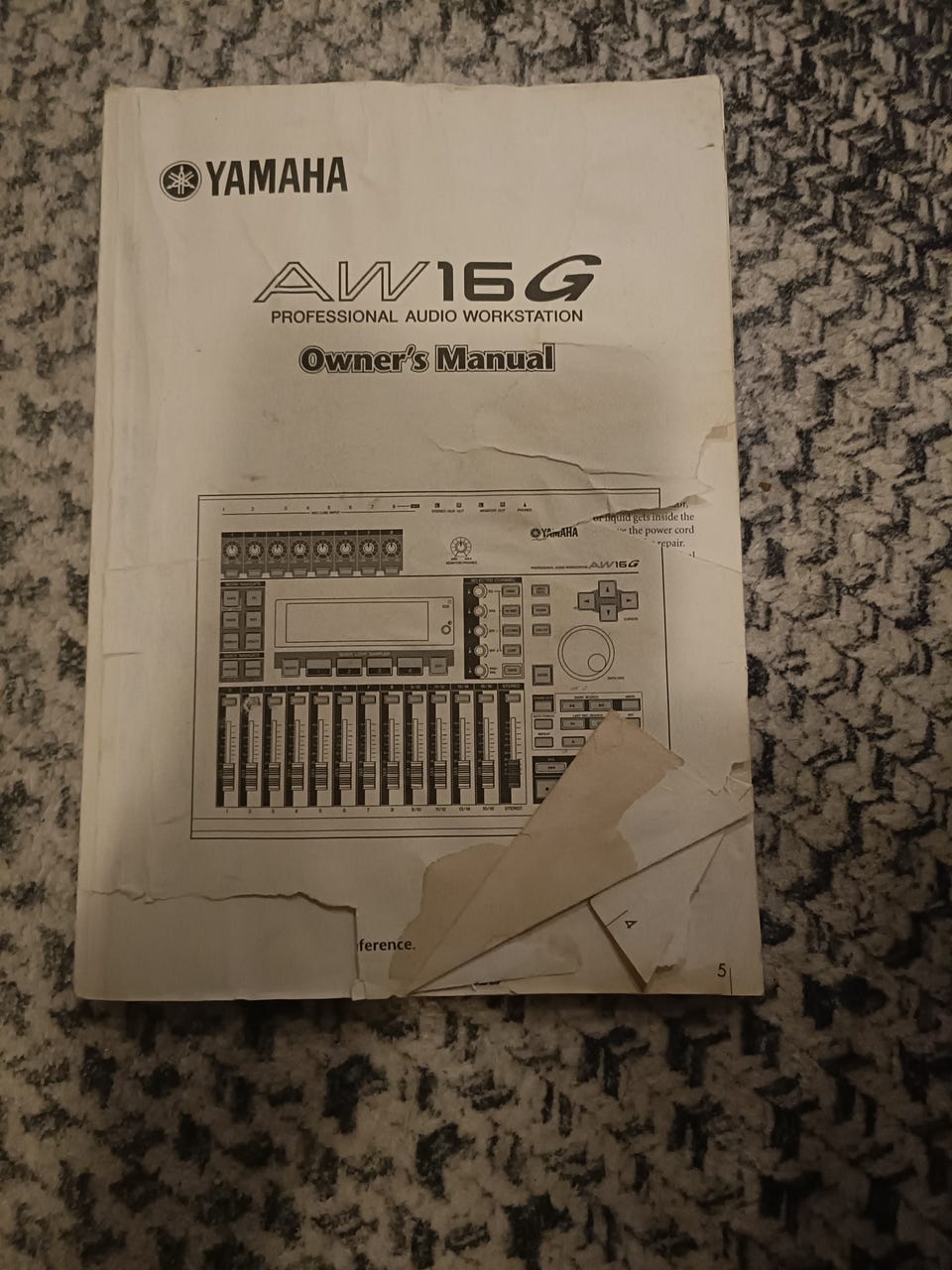

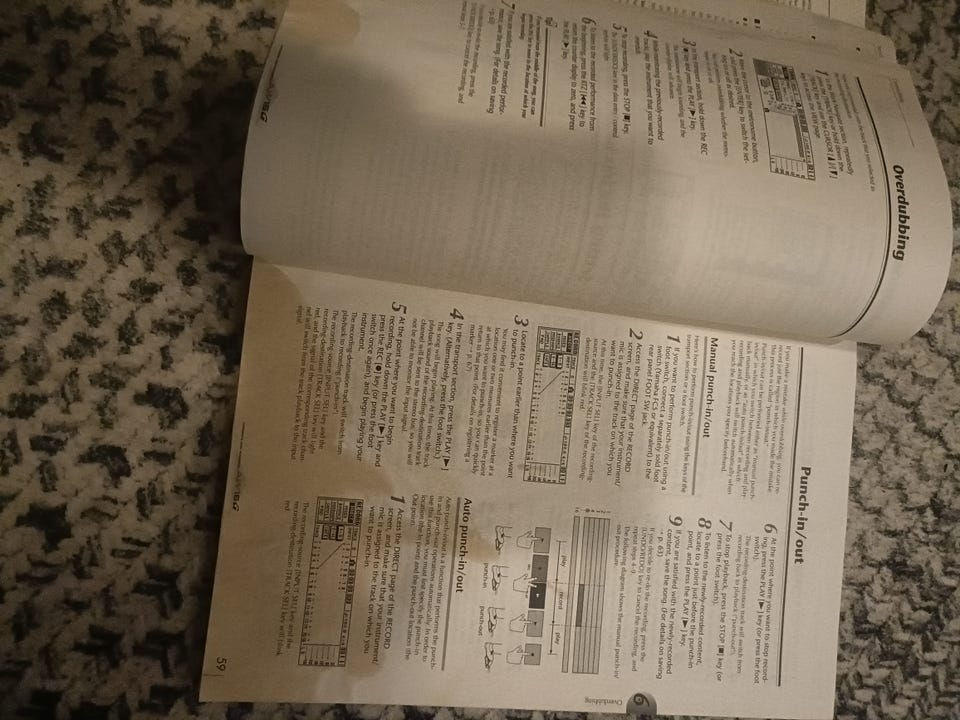

Manuaali tulee mukaan, kärsinyt ja muutaman kahvin kanssa luettu. Netistä saa ladattua siistimmän version
Specs
The AW16G is a 16-track recorder that can record 8 inputs simultaneously. Each of the 16 audio tracks also has 8 virtual tracks for storing alternate takes. Then there are two tracks that form the stereo mixdown tracks. The recorder comes standard with a 20 Gigabyte hard disk and a CD-RW drive.
Inputs 1 and 2 are phantom-powered (switchable) XLR connectors for both mic and line, inputs 3 to 7 are 1/4" line/mic, input 8 has two 1/4" jacks, one a balanced mic/line, the other a high-impedance guitar input. Outputs include left and right aux outputs and left and right stereo monitor outputs, all on 1/4", and a stereo 1/4" headphone jack. Also on the rear panel is the optical digital (S/PDIF) I/O, MIDI I/O and the proprietary power connection which runs to a line lump power supply.

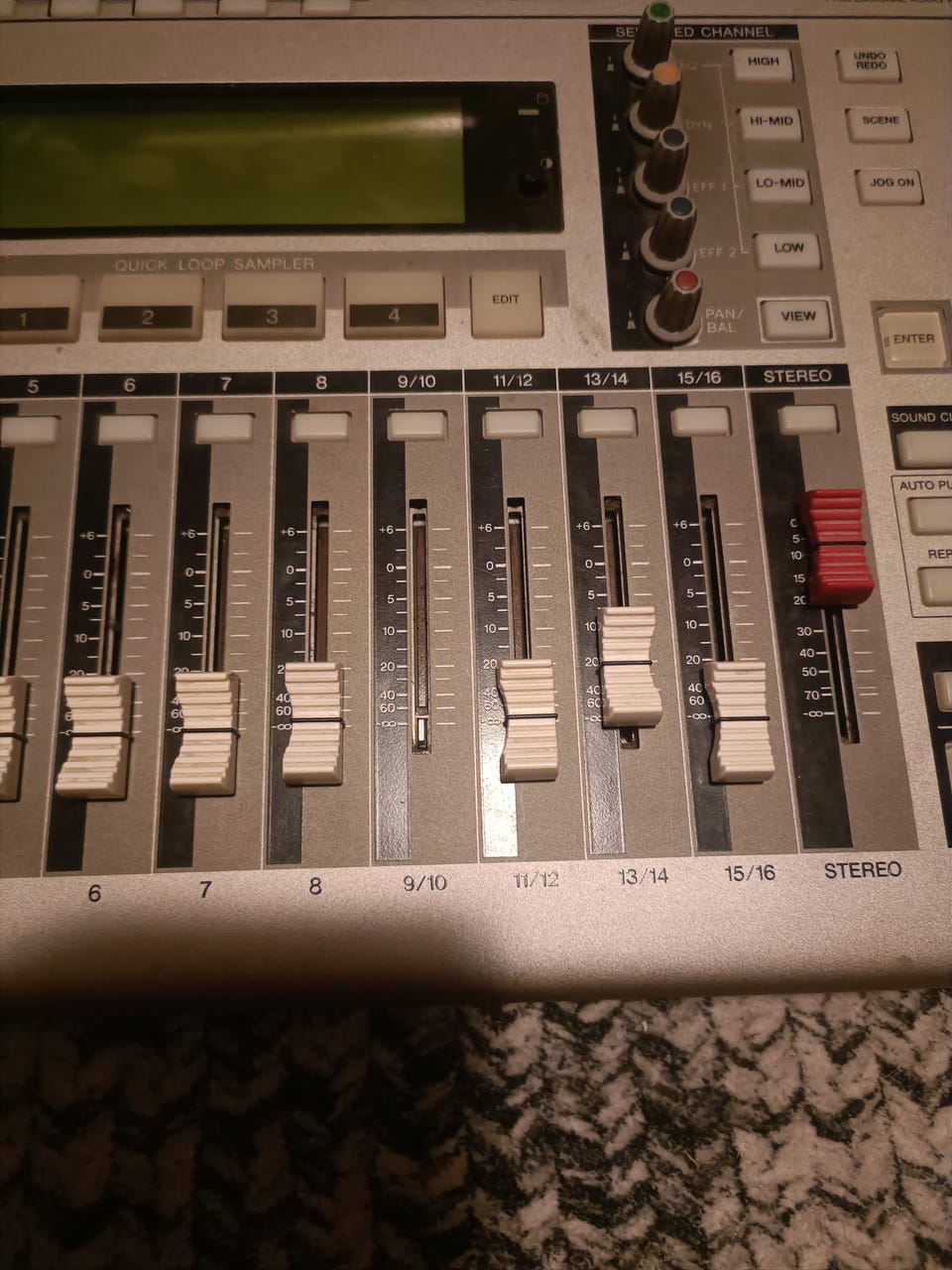

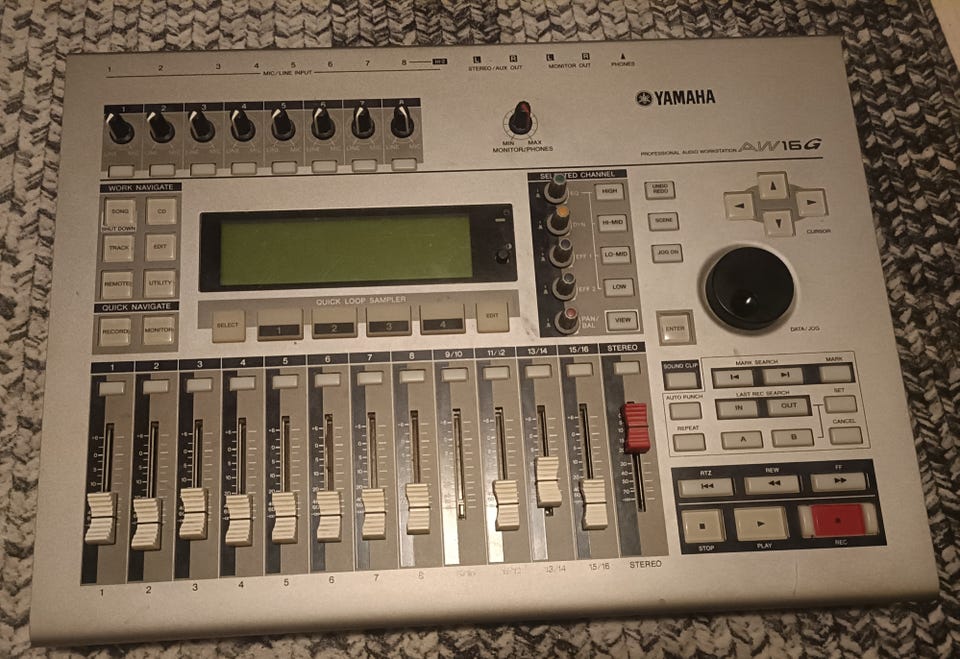

The front panel contains gain knobs and arming buttons for the 8 inputs, a bank of 8 navigation buttons, a large LCD display with controls for the loop sampler below it, and five push-knobs (for controlling eq, dynamics settings, sends, etc.) with selector buttons next to them. Next to the push-knobs are the jog wheel, the navigational arrow keys and other associated buttons. Below them are the transport, autopunch and autolocate controls. Finally the AW16G features 13 faders: 8 for the first 8 mono channels, 4 for the 4 stereo paired chan-nels, and a master fader. The faders are accompanied by buttons that double for record-arm, mute and other functions.
The AW16G offers processing power in abundance. Each chan-nel, including the input channels, has fully parametric 4-band eq and dynamics processing. There is also a pair of stereo effects, a mastering section for processing stereo mixes, and a loop sampler with 4 sample pads—the AW16G comes with a CD-R containing over 250 MB of samples. The loop sampler can record directly from the inputs, from recorded sound stored on the hard disk or from sampling or audio CDs. The whole process is simple and effective.
The AW16G also offers the typical editing features of a desktop hard disk recorder. One can copy, move, exchange, time-compress, and pitch shift to your heart's content. Copying between tracks (and virtual tracks) is easy—just define the start and end times of the section to be copied and the start time of the destination and hit Execute. Copies, etc. happen pretty quickly, and there's a history list with multiple levels of Undo and Redo
Lisätietoja kysymällä
